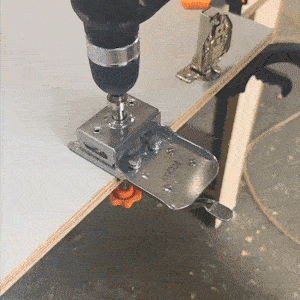

Install cabinet doors and hardware quickly without measuring or guesswork. This precision routing guide eliminates alignment errors by holding your drill bit steady during the boring process. The result is consistently positioned holes that accept hinges perfectly on the first try.
Rapid Setup and Secure Grip

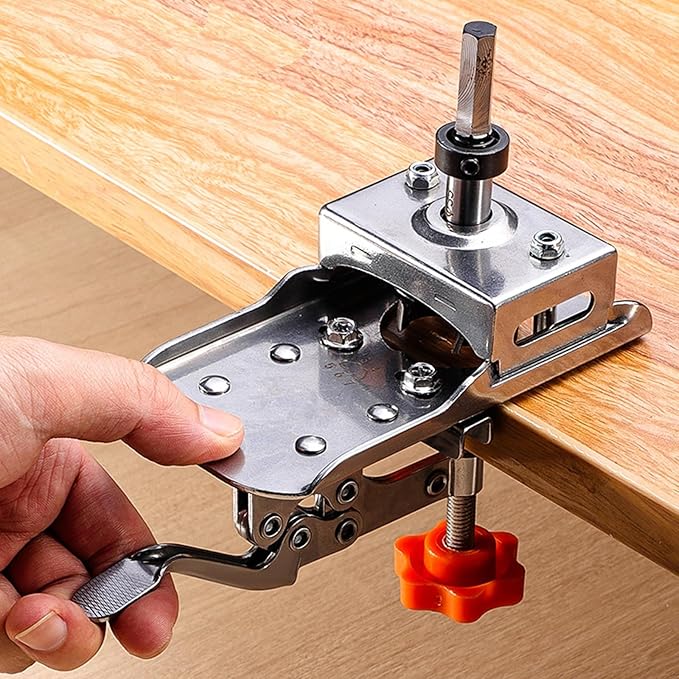

Ordinary woodworkers can achieve professional results immediately since the jig requires zero specialized training. Simply align the base against your workpiece and lock the position. Thickened rubber feet create substantial friction to prevent sliding, safely accommodating board thicknesses between 10 and 30 millimeters without marring delicate surfaces.
Precise Edge Adjustment
The mounting plate features a five-position offset system allowing increments from three to seven millimeters. This graduated scale removes guesswork when positioning hinge cups near panel edges. You can fine-tune the gap distance to match any door frame requirement while maintaining strict vertical alignment throughout drilling.
Durable Construction

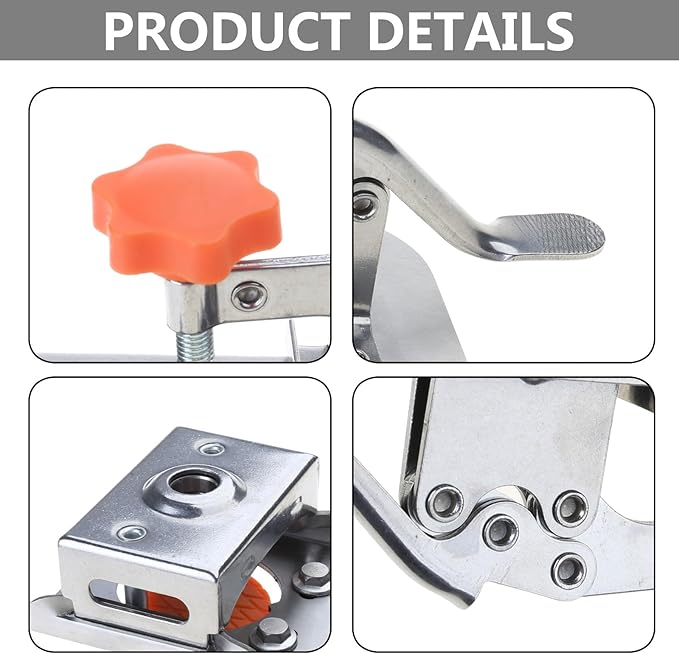

Built from hardened steel alloys and polished stainless components, the framework resists bending and surface wear over repeated shop sessions. The reinforced channels maintain tight tolerances even after extended heavy-duty application, ensuring long-term reliability for both hobbyists and trade professionals.
Ideal For Various Projects
Carpenters, furniture restorers, and DIY builders rely on this template to streamline assembly workflows. It handles standard European-style cup hinges across flat panels, making it essential for kitchen cabinetry, wardrobe construction, and architectural millwork.
Technical Details
- Frame Material: Reinforced alloy metal housing with stainless steel reinforcement rails
- Board Compatibility: Flat surfaces ranging from 10 to 30 mm in thickness
- Offset Settings: Five adjustable positions spanning 3 mm to 7 mm edge clearance

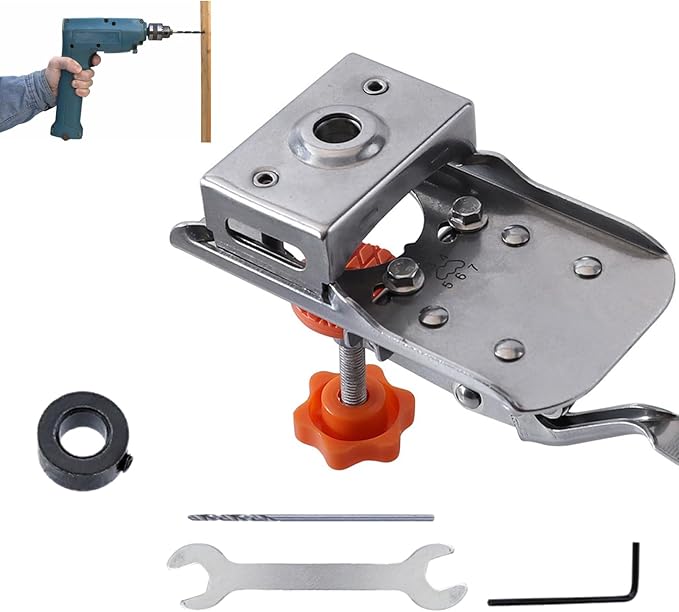

- Package Contents: Complete routing guide assembly as pictured
